High Tempertaure Oven

    on request

    Ident. No.: AS-0023

    Govt. & Pvt. Research Institutes

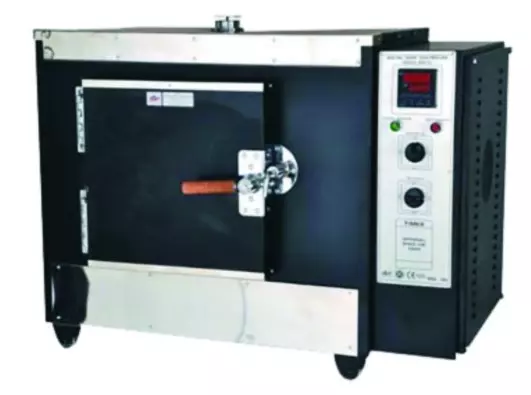

    HIGH TEMPERTAURE OVEN (390°C)

    CONSTRUCTION:
    • Triple walled, inside mild Steel / Stainless Steel 304 qlty
    • Outside made of Mild Steel painted in epoxy Powder Coating.
    • Insulation of 100mm by mineral wool.
    • Temperature 50°C to 390°C plus minus 3°C
    • Microprocessed Digital Indicator cum Controller with LED display
    • Heating Elements are placed on both sides.
    • The door has asbestos rope / synthetic rubber gasket.
    • Complete with 2/3 nos removable S/S Wire Mesh shelves
    • One no. Air Circulating Fan,
    • Work on 220/230 or 400/440V AC, 50 Hz.



    SIZE INSIDE CHAMBER (STAINLESS STEEL 304 QLTY):

                MODEL                               SIZE (MM)                               LTRS                                  RATING                           PRICE WITHOUT AIR                                                       W    H    D                                                                                                                   CIRCULATING FAN

    HOT-0C1

    355 x 355 x 355

    45.0

    3.0 KW

    N/A

    HOT-0C2

    455 x 455 x 455

    95.0

    3.0 KW

    N/A

    HOT-0C3

    455 x 455 x 605

    125.0

    4.5 KW

    N/A

    HOT-0C4

    605 x 605 x 605

    224.0

    6.0 KW

    N/A

    HOT-0C5

    605 x 605 x 910

    336.0

    6.0 KW

    N/A



    SPECIFICATION:

    Usage/Application

    HIGH TEMPERTAURE OVEN (390°C)

    product code

    AS-0023

    Material

    Stainless Steel 304 qlty

    Brand/Make

    Advance Science

    Temperature

    50°C to 390°C

     Work on

    220/230 or 400/440V AC, 50 Hz
